San Pablo: St. Joseph Cemetery

St. Joseph Cemetery, 2560 Church Lane, San Pablo, CA Map

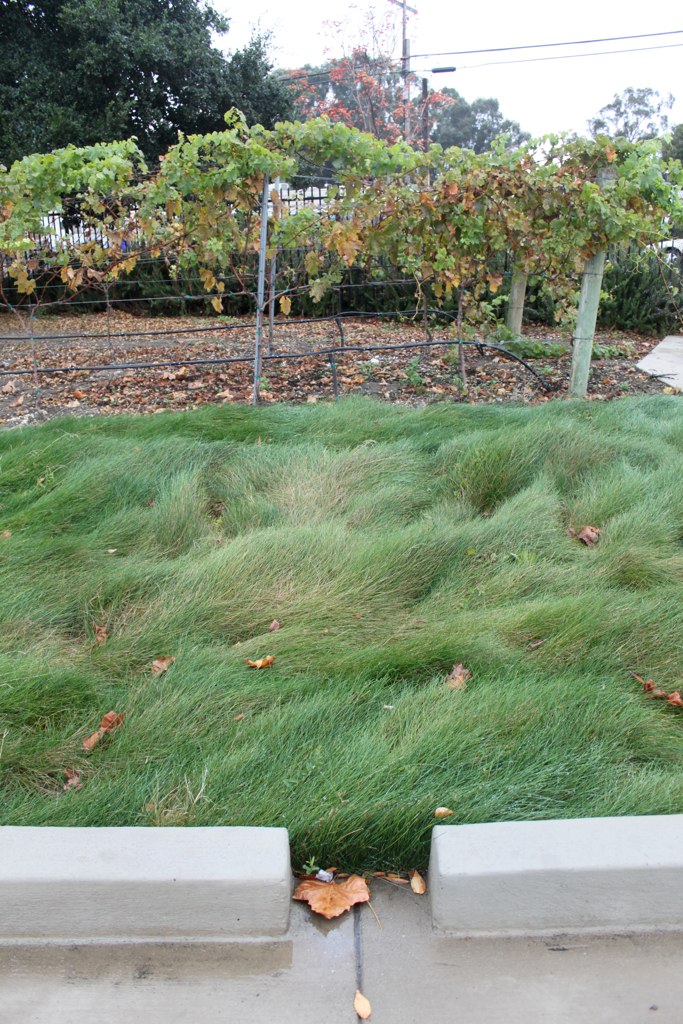

At St. Joseph Cemetery in San Pablo, swales filled with waving grasses intercept runoff and also soften the often difficult experience of visitors. The swales create green islands in what would otherwise be a sea of asphalt.

bgsanpablocemeterymainbldg San Pablo: St. Joseph Cemetery
bgsanpablocemeteryentranceswales San Pablo: St. Joseph Cemetery

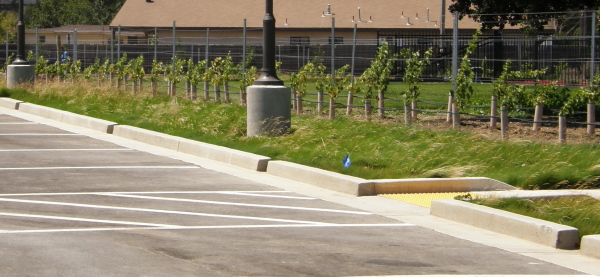

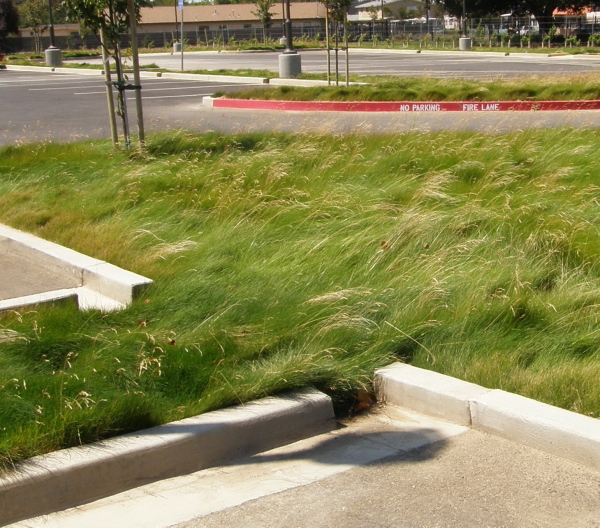

Curb cuts guide parking-lot runoff to the swales. These shallow grassy depressions are graded so that water flows slowly and does not pond. Pollutants adhere to soil and grasses and degrade, while water soaks into soil. Raised drains channel high flows to storm drains, preventing overflows and flooding. (Click on thumbnails below for larger images.)

bgsanpablocemeteryendcuts2-75x66 San Pablo: St. Joseph Cemetery

bgsanpablocemeterycurbcuts-250x115 San Pablo: St. Joseph Cemetery

bgsanpablocemeteryendcut1-250x188 San Pablo: St. Joseph Cemetery

bgsanpablocemeterydrain-75x100 San Pablo: St. Joseph Cemetery

bgsanpablocemeterycolumb-250x261 San Pablo: St. Joseph Cemetery

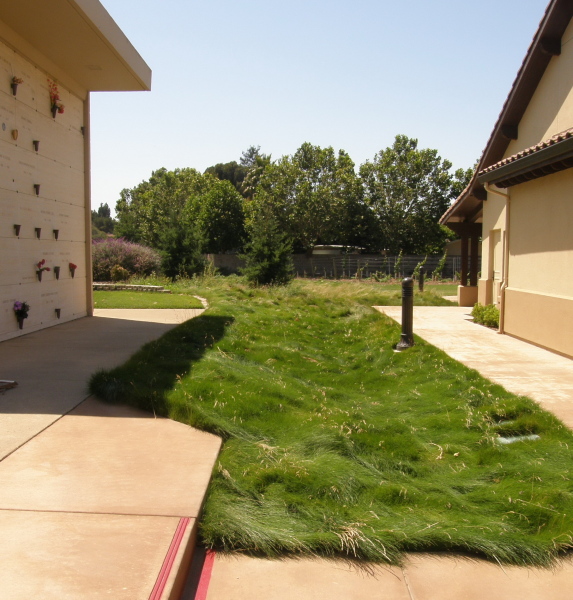

Left, a swale between the main building and columbarium drains runoff from patio and roofs to grapevines that edge the property.
